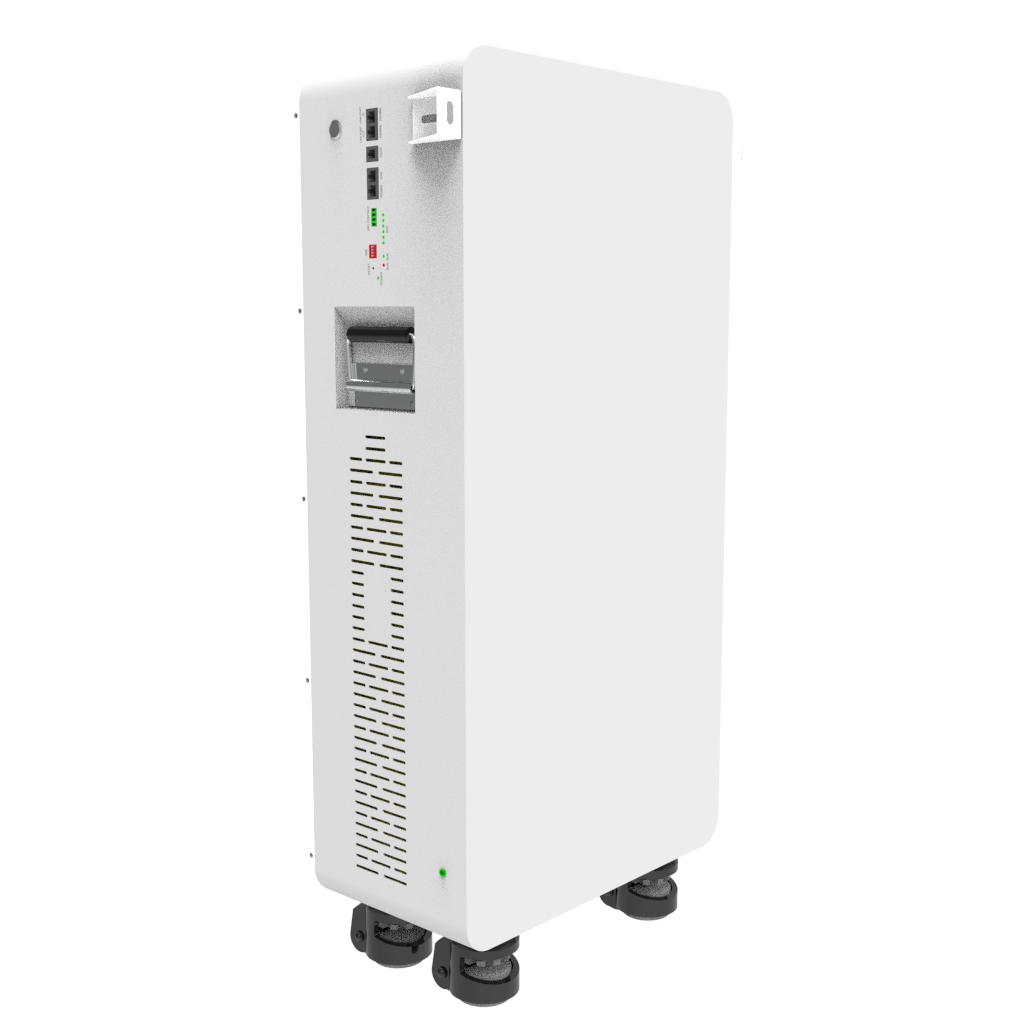

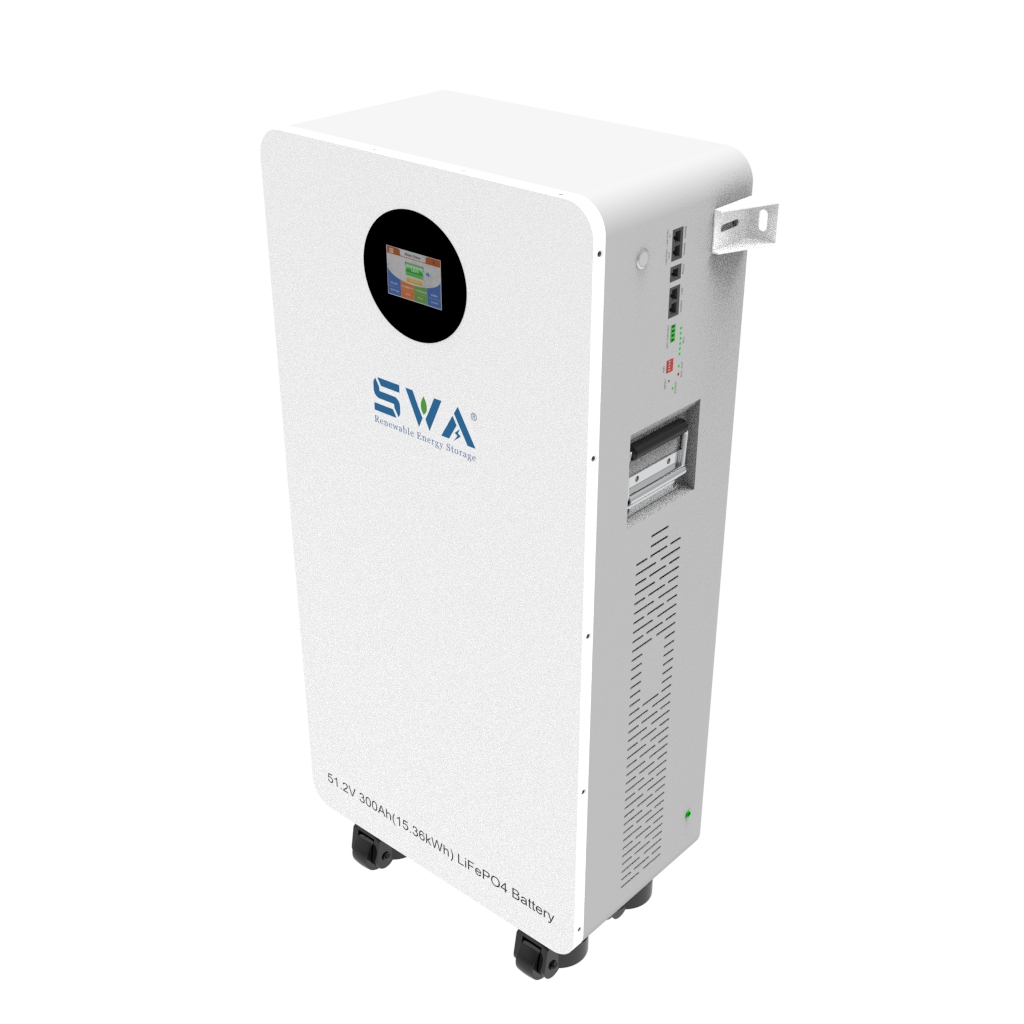

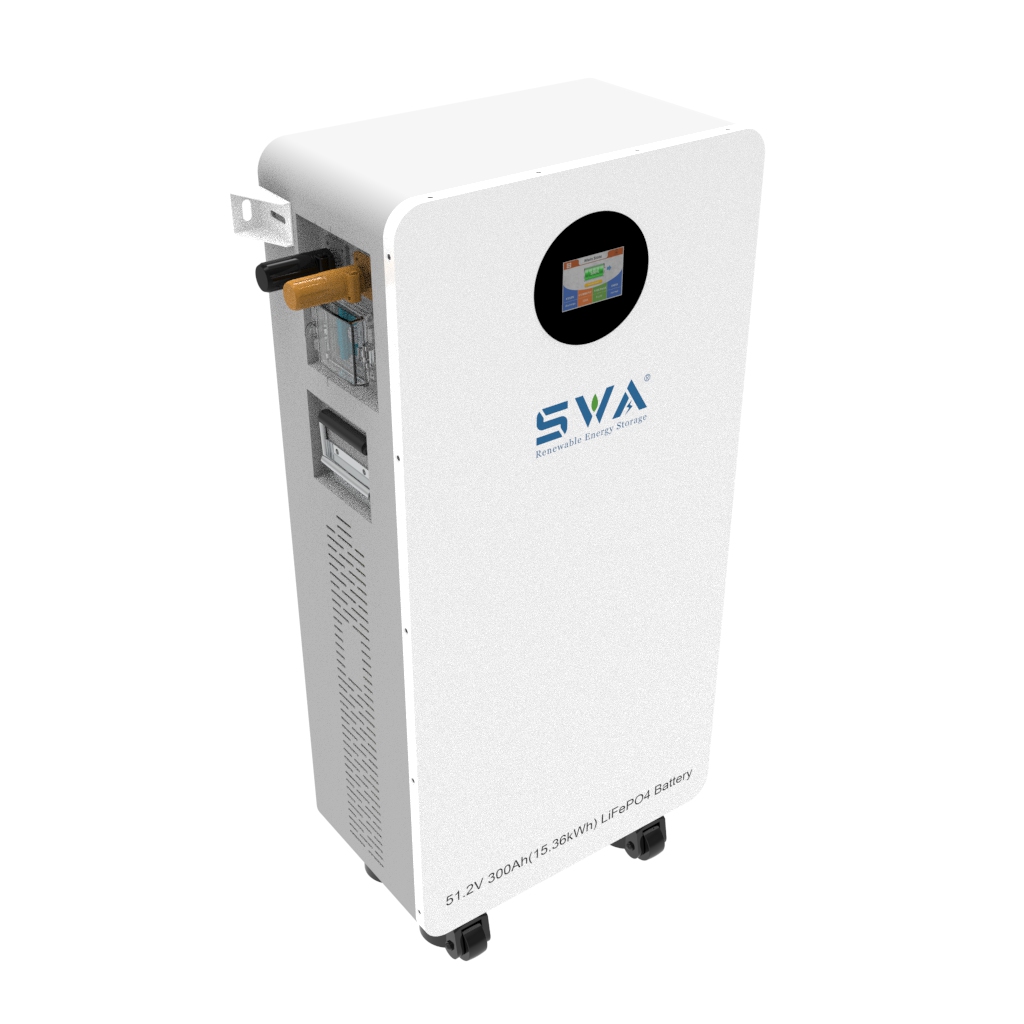

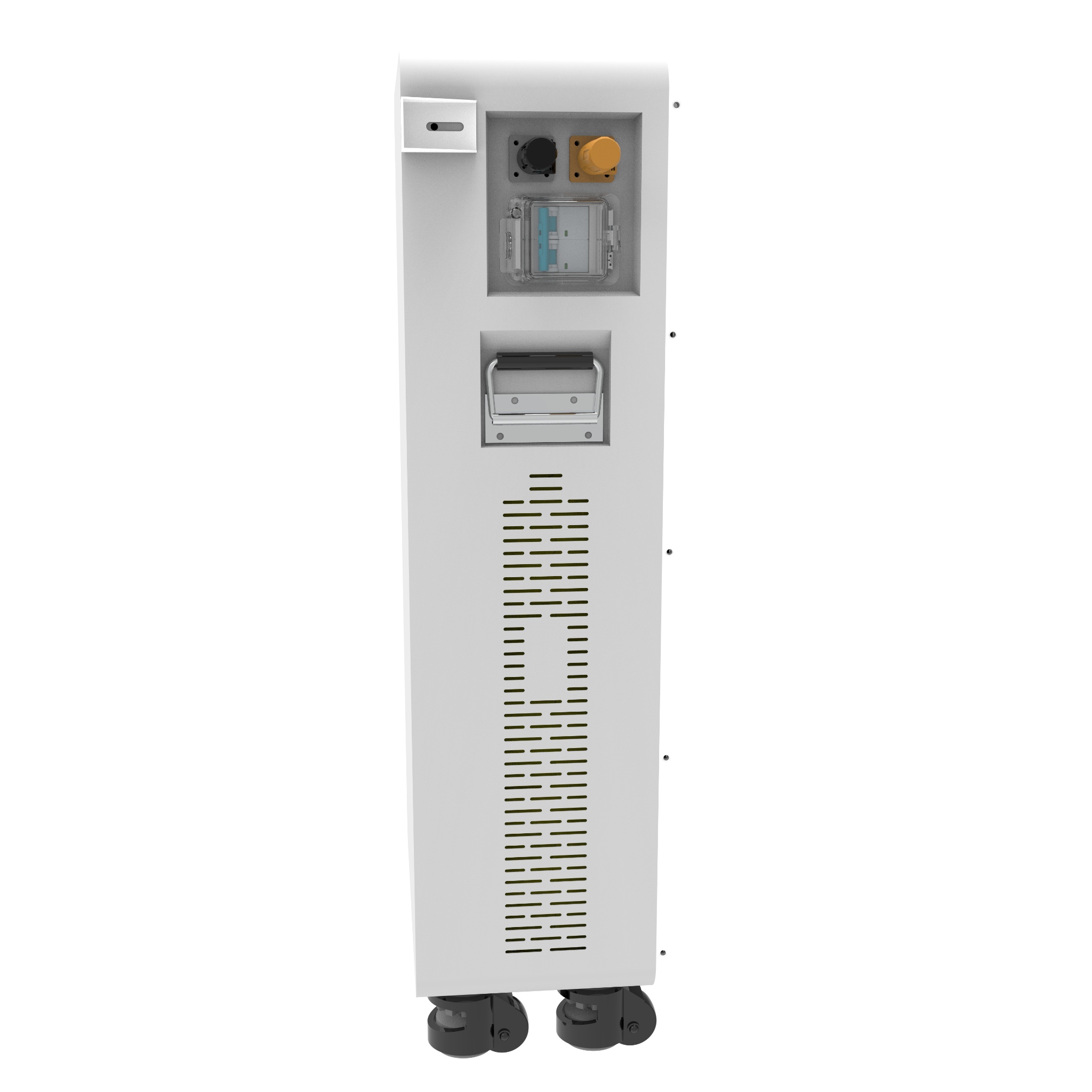

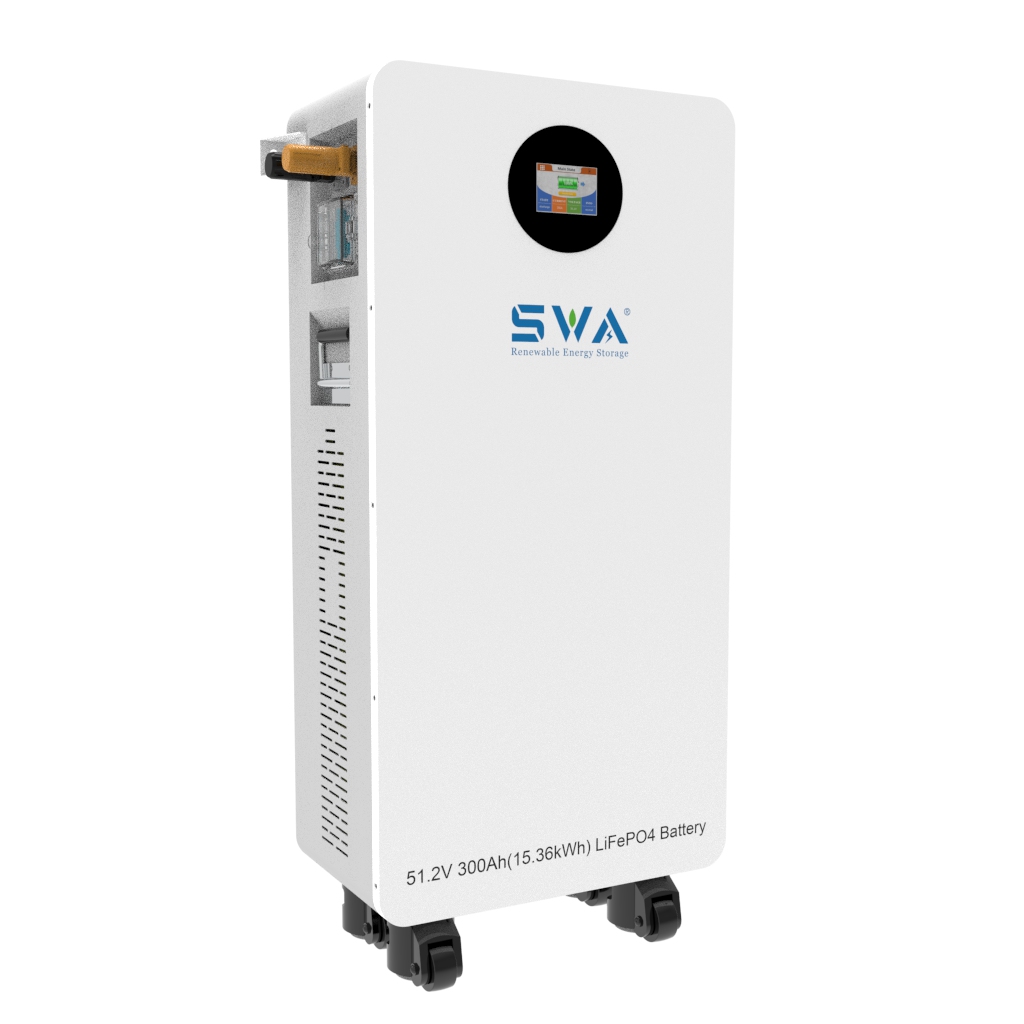

SWA-WM-16S300
Details
3D Display
DOWNLOAD
Product Description
- LFP(lithium iron phosphate) cell to ensure the highest safety
- Built-In BMS protects the cell such as Temperature, Current, Voltage, SoC
- SoH Extra long cycle life times with 6500 cycles with 80% DoD
- Compatible with most ofthe available lnverters
- Possibility of parallel connection with up to 16 pieces
Product Specifications
| Model | SWA-WM-16S300 |
| General Information | |
| Nominal Voltage | 51.2Vdc LFP |
| Nominal Capacity | 300Ah |
| Nominal Energy | 15360Wh |
| Operating Parameters | |
| Operating Voltage Range | 44.8V To 57.6V |
| Discharge Cut-Off Voltage | 40V |
| Max Discharging Current | 150A (Continuous) |
| Peak Discharging Current | 200A / 3s |
| Max Charging Voltage | 58.4V |
| Standard Charging Current | 60A (0.2C) |
| Mechanical Specifications | |
| Dimensions | L825*W413*H230 mm |
| Weight | 114 Kg |
| Mounting Options | Wall Or Floor |
| Environmental Specifications | |
| Discharging Temperature | -20℃ ~ 55℃ |
| Charging Temperature | 0℃ ~ 45℃ |
| Storage Temperature | 0℃ ~ 35℃ |
| Ingress Rating | IP52 |
| Cycle Life | ≥8000 Cycles(0.2C,25℃@80% DoD) |
