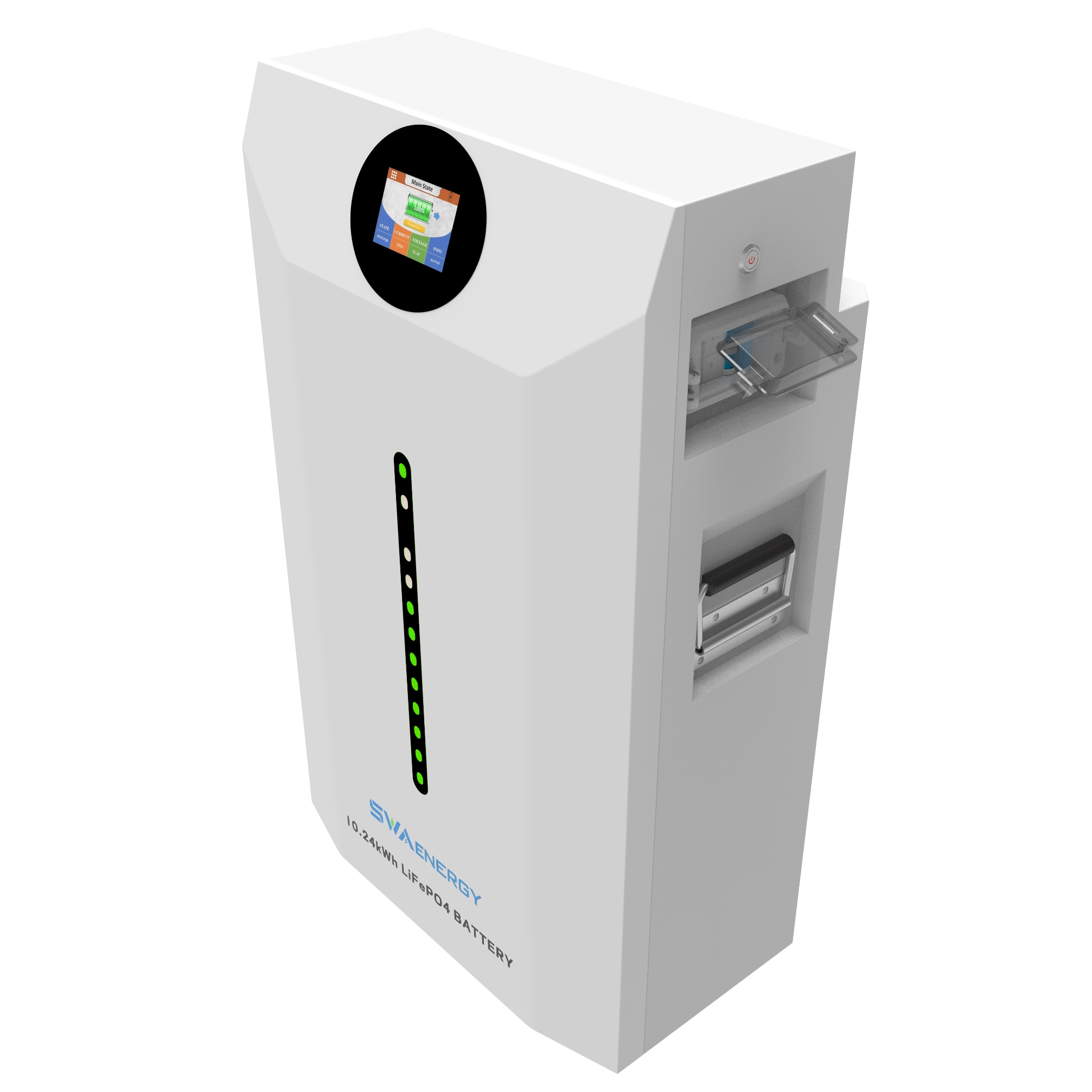

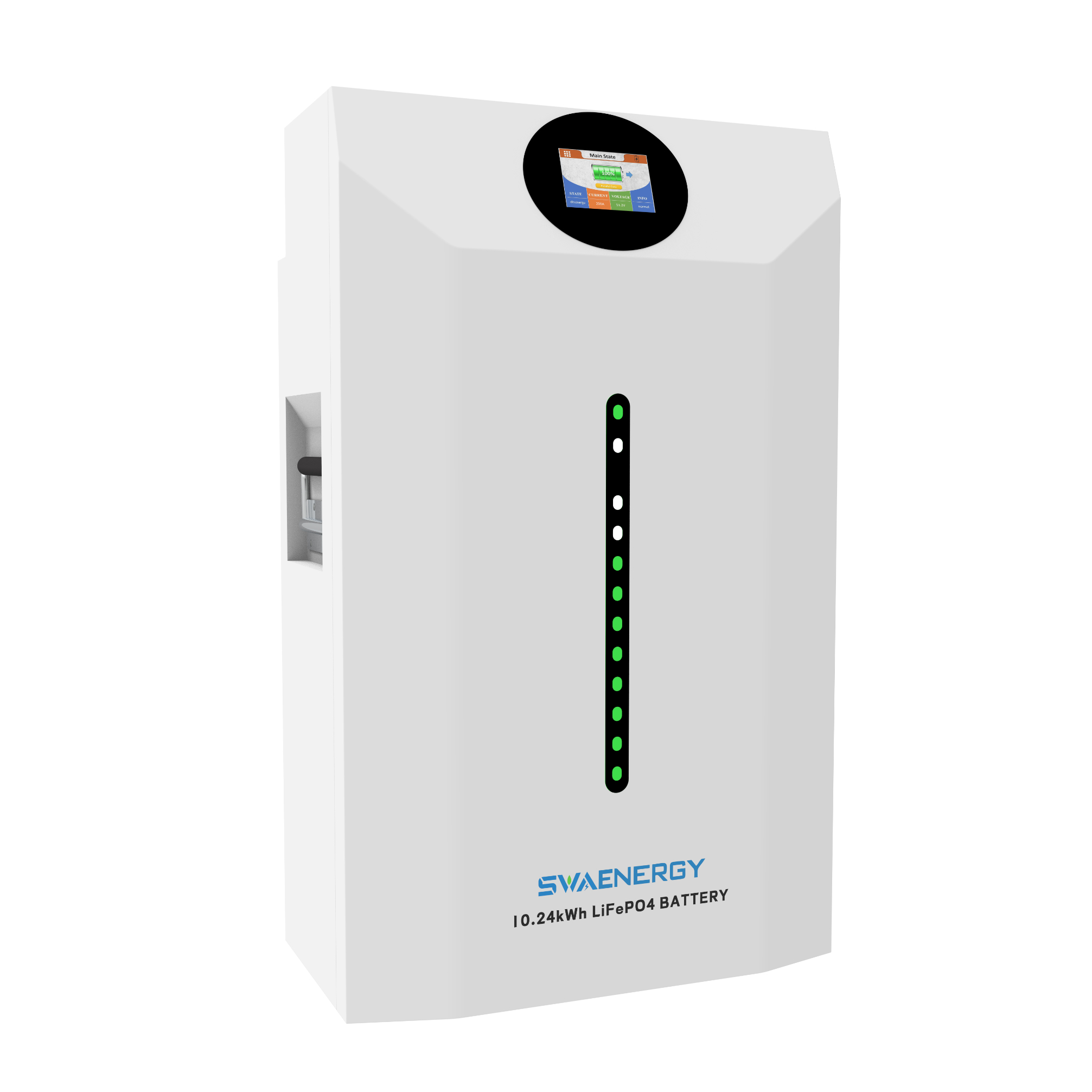

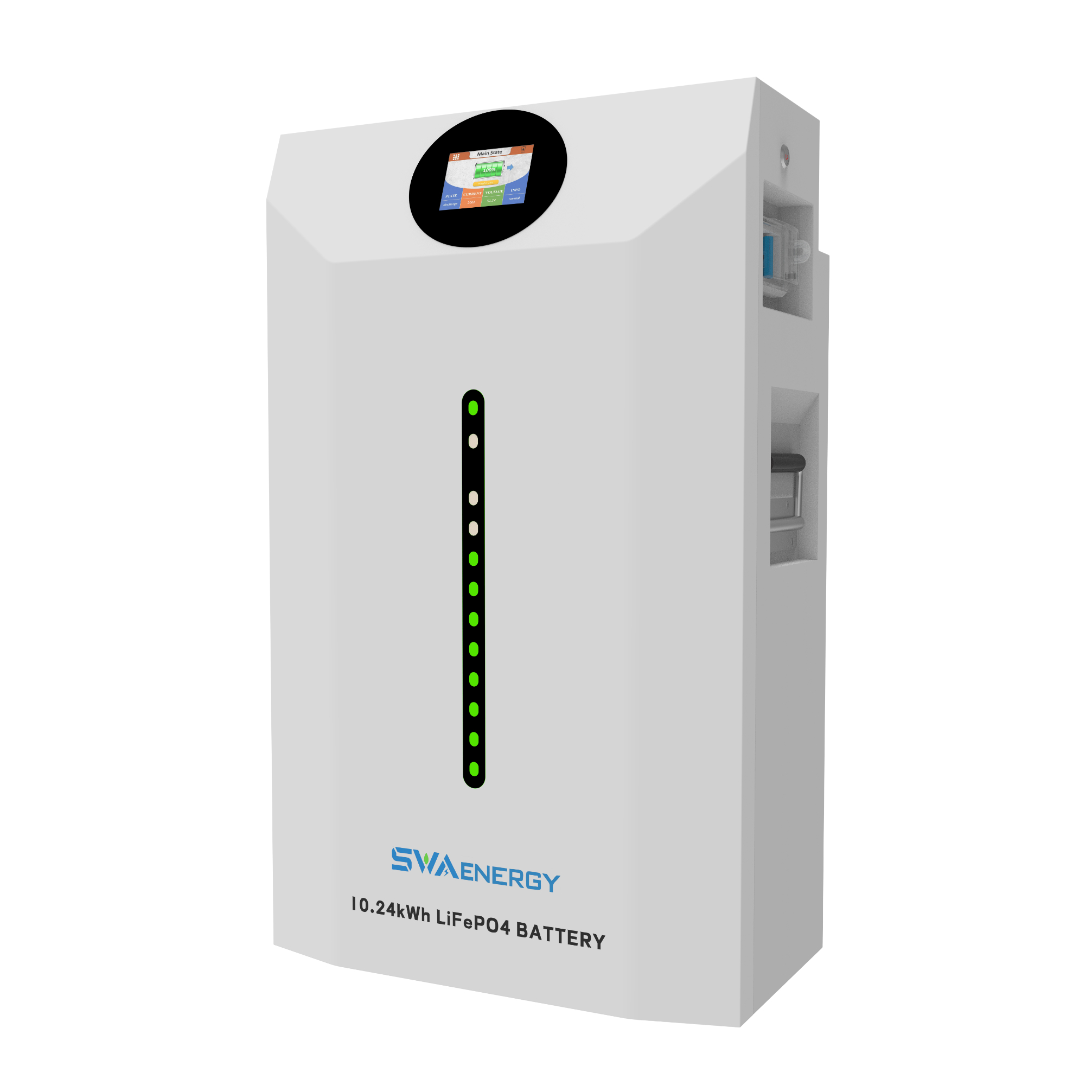

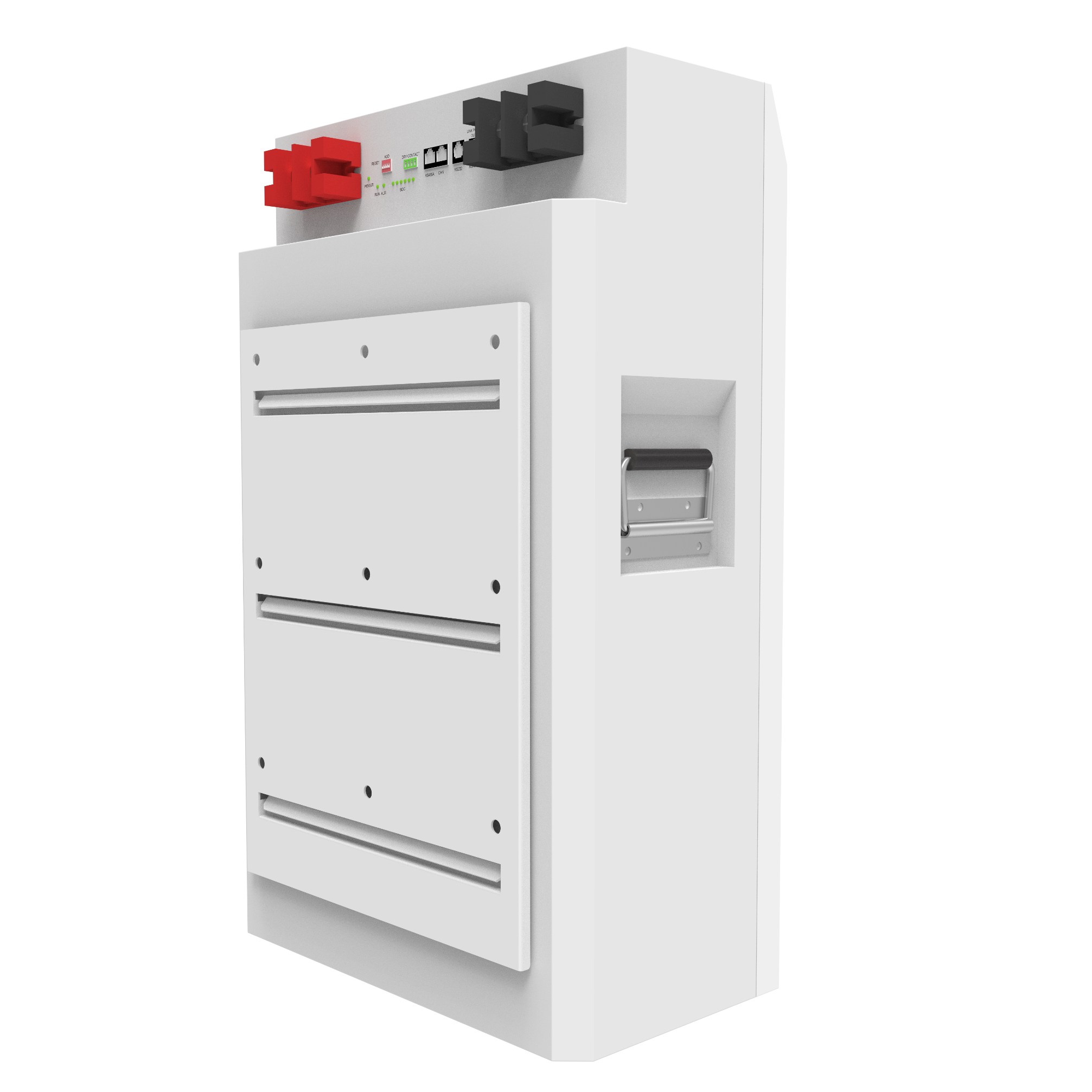

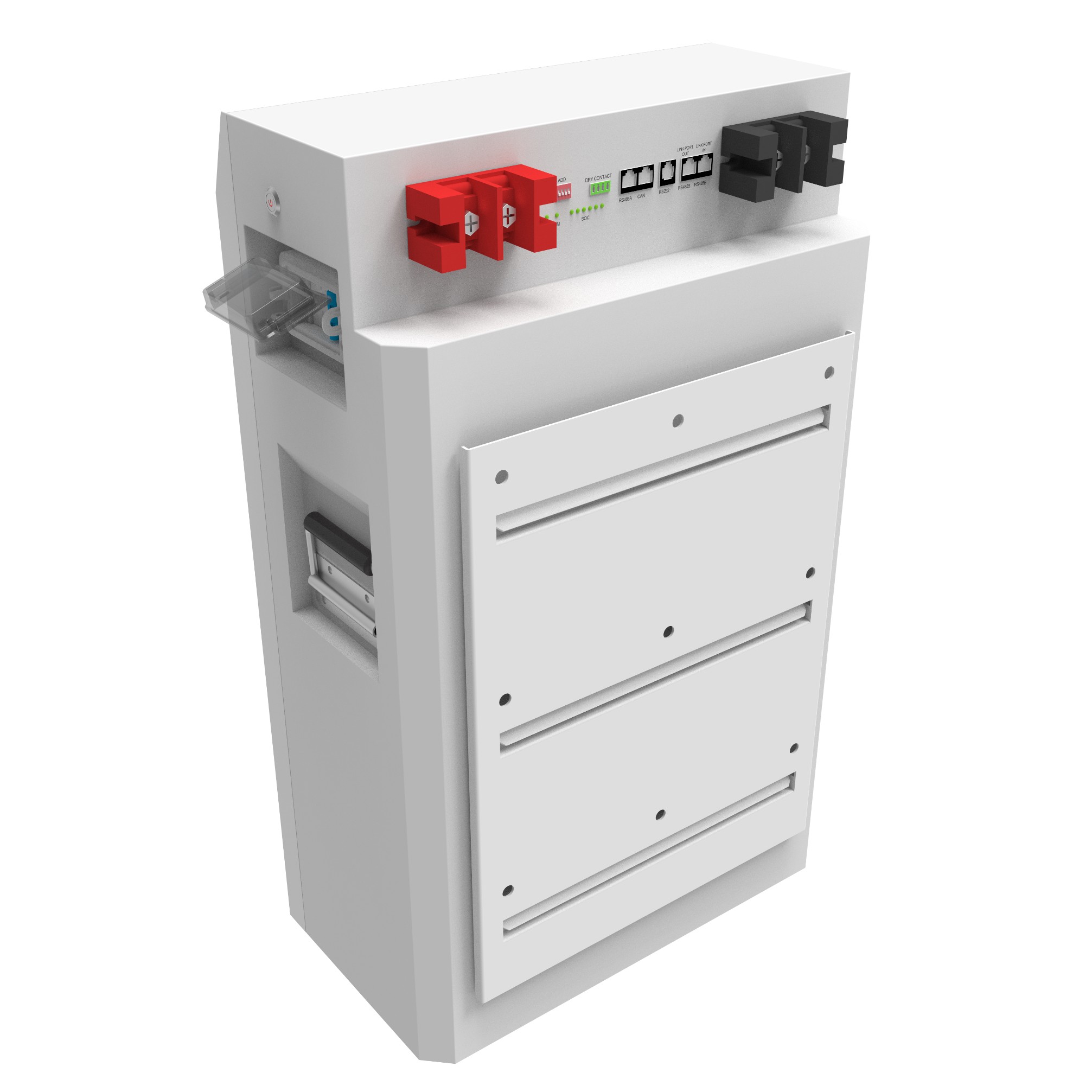

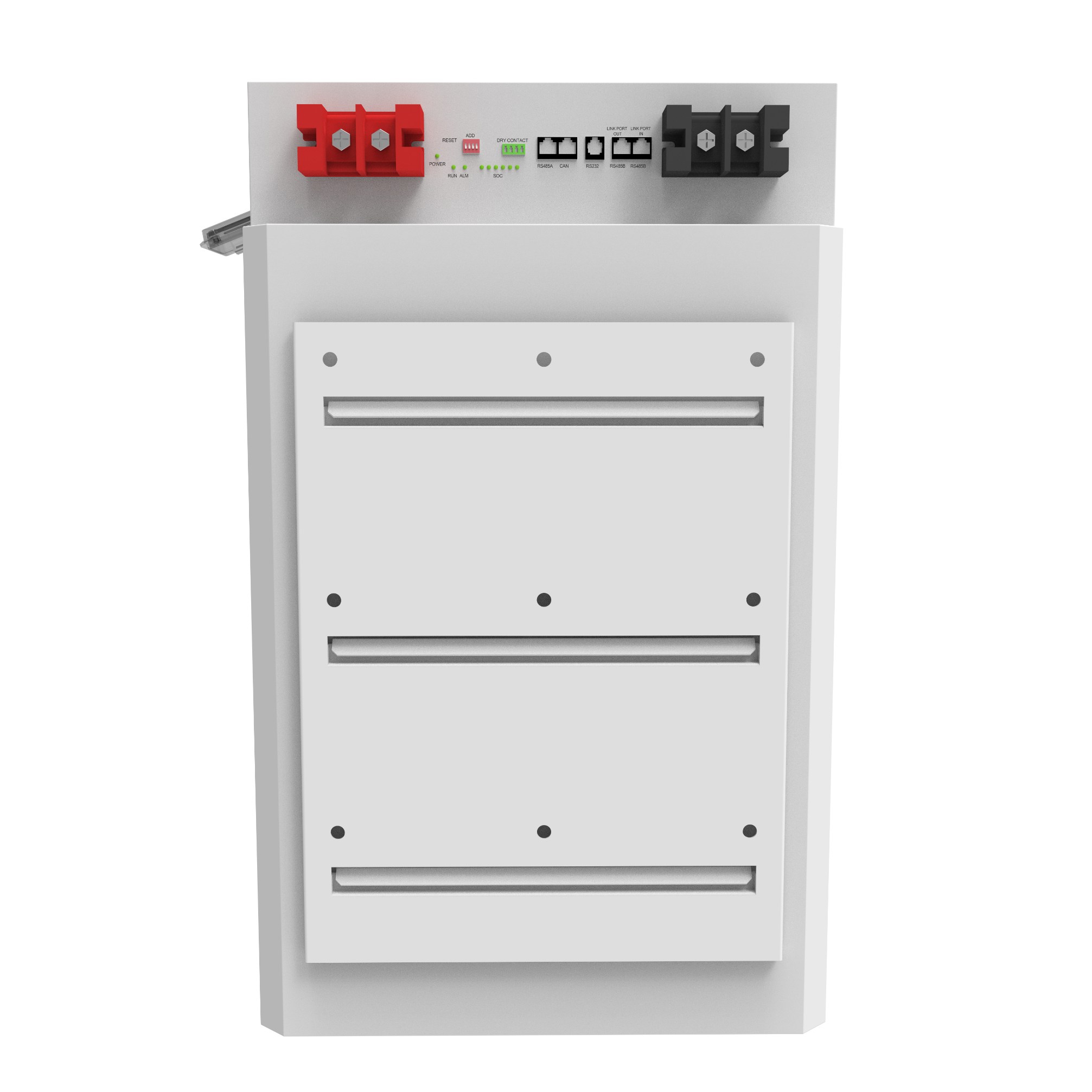

SWA-LRM-35828 Power Tower Energy Storage Battery
Product Description
- LFP(lithium iron phosphate) cell to ensure the highest safety
- Built-In BMS protects the cell such as Temperature, Current, Voltage, SoC
- SoH Extra long cycle life times with 6500 cycles with 80% DoD
- Compatible with most ofthe available lnverters
- Possibility of parallel connection with up to 16 pieces
Product Specifications
| Model | SWA-WM-16S100 |
| General Information | |
| Nominal Voltage | 51.2Vdc LFP |
| Nominal Capacity | 100Ah |
| Nominal Energy | 5120Wh |
| Operating Parameters | |
| Operating Voltage Range | 44.8V To 57.6V |
| Discharge Cut-Off Voltage | 40V |
| Max Discharging Current | 100A (Continuous) |
| Peak Discharging Current | 150A / 3s |
| Max Charging Voltage | 58.4V |
| Standard Charging Current | 20A (0.2C) |
| Mechanical Specifications | |
| Dimensions | L650*W385*H155 mm |
| Weight | 44 Kg |
| Mounting Options | Wall Or Floor |
| Environmental Specifications | |
| Discharging Temperature | -20℃ ~ 55℃ |
| Charging Temperature | 0℃ ~ 45℃ |
| Storage Temperature | 0℃ ~ 35℃ |
| Ingress Rating | IP52 |
| Cycle Life | ＞ 6500 Cycles(0.2C,25℃@80% DoD) |
